Key attributes：
|
Car Model |
Toyota COROLLA L4 1.8L 09-14 |
Material |
All aluminum |
|
TONGSHI NO. |
88-75018 |
Certification |
IATF16949 |
|
OE NO. |
88450-02280 |
Packing |
Neutral packing/ Customized packing / TONGSHI packing |
|

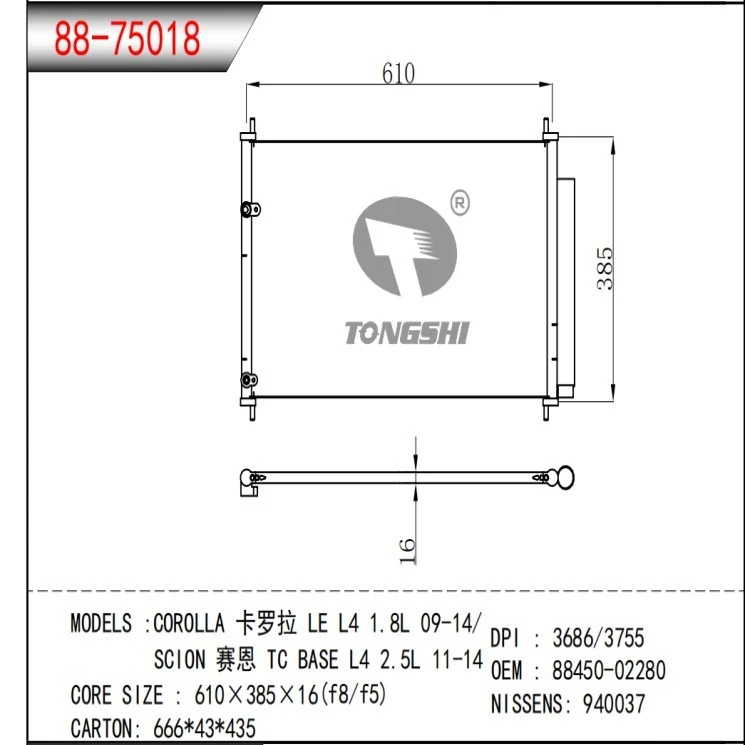

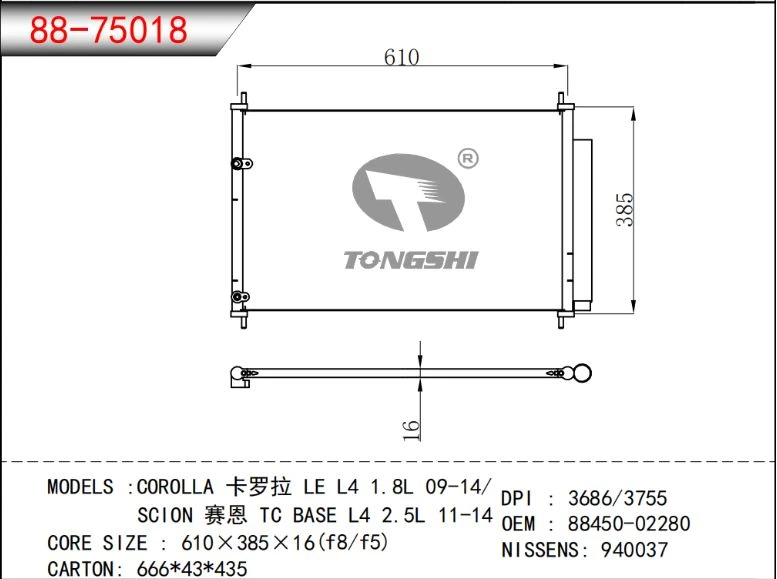

Core size |
610×385×16(f8/f5) |
Purpose |
for replace/repair |
|
Tank size |
Product name |
condenser for Toyota COROLLA L4 1.8L 09-14 |
|
|
MOQ |
20PCS |
Brand Name |
TONGSHI |
APPLICATION OF LIGHTWEIGHT MATERIALS:
Using lightweight materials such as aluminum alloy, the weight is reduced by more than 40% compared with traditional copper condensers, reducing energy consumption of equipment (such as automobiles).
COMPACT DESIGN:
Through flattened pipelines and high-density fins, efficient heat dissipation is achieved in limited space, adapting to narrow installation environments.
ANTI-CORROSION COATING:
The surface is coated with oxidation-resistant, acid and alkali-resistant coating, which reduces the erosion of metalby rainwater, dust, salt and so on, and prolongs the service life.
HIGH-STRENGTH STRUCTURE:
Pipelines and fins are connected by brazing and other processes to improve overall rigidity and resist vibration and impact (such as bumps during car driving).
MODULAR INTEGRATION:
It can be integrated with radiators, intercoolers and other components, sharing heat dissipation air ducts, saving space and simplifying pipeline layout.
REDUCTION OF COMPRESSOR LOAD:
Efficient condensation can keep the refrigerant in a stable liquid state and pressure before entering the expansion valve, reducing the energy consumption increase of the compressor caused by abnormal system pressure
ADAPTATION TO MULTIPLE REFRIGERANTS:
It can be compatible with different types of refrigerants such as R134a and R1234yf, meeting the upgrading of environmental protection standards and the needs of different equipment..
INTELLIGENT HEAT DISSIPATION ADJUSTMENT:
Equipped with electronic fans or louver-type adjustment mechanisms, dynamically adjust heat dissipation intensity according to refrigeration needs, avoiding invalid energy consumption
FAQ:
1. What is the function of the condenser?
The condenser is a critical component in a car's air conditioning system. Its primary function is to cool the high-temperature, high-pressure gaseous refrigerant and condense it into liquid, thereby releasing heat.
2.What should I do if the condenser is too dirty?
If the condenser is too dirty, the heat dissipation will be reduced, resulting in poor cooling performance. To solve this problem, after the engine has cooled, clean the condenser surface with a soft brush or spray it with a low-pressure water gun. Avoid high-pressure water, as this may damage the fins.
3.What should I do if the condenser fins are damaged or deformed?
If the condenser fins have collapsed or become clogged due to impacts from small stones or deformation over time, the heat exchange area is reduced, preventing the refrigerant from dissipating sufficiently. The condenser needs to be repaired or replaced.
4.What should I do if the condenser fan is malfunctioning?
The condenser fan is responsible for forced cooling at low speed or at idle. If the fan speed is insufficient, the blades are damaged, or there is a circuit fault, this can result in insufficient heat dissipation from the condenser. Check the fan circuit or replace the fan.
5.What are the symptoms of condenser failure?
A faulty condenser may cause the air conditioner to not cool properly and increase the temperature inside the vehicle. If the condenser is leaking, scratches, or other damage may be visible, and oil may seep out from the leaking area.
6.What should I do if the condenser is leaking?
If the condenser is leaking, you need to inspect the leak and repair it. If the leak is severe, the condenser may need to be replaced.
7.What should I do if the condenser is clogged?
clogged condenser can restrict refrigerant flow, affecting cooling efficiency. This problem can be corrected by repeatedly flushing it with nitrogen or dried compressed air.
8.How should I maintain my condenser?
It is recommended to inspect the condenser before summer each year and flush it with a high-pressure air gun or a specialized cleaning agent. Avoid using a harsh brush to damage the fins. Also, keep the engine compartment clean and free of debris.
9.Does the condenser need to be replaced regularly?
The condenser generally does not require regular replacement, but if it leaks, is clogged, or has severe damage to the fins, it will require professional repair or replacement.
10.How long is your lead time?
45days normally.
